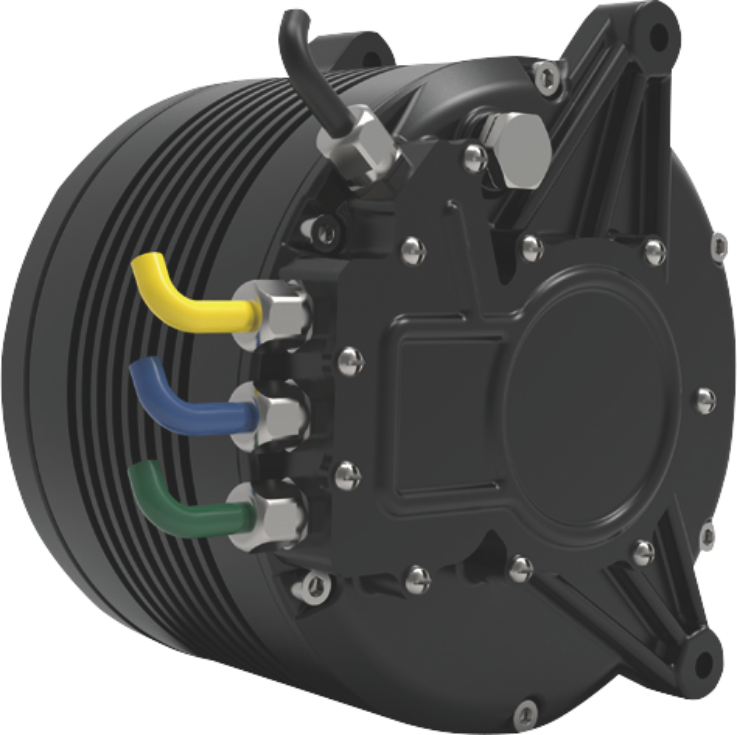

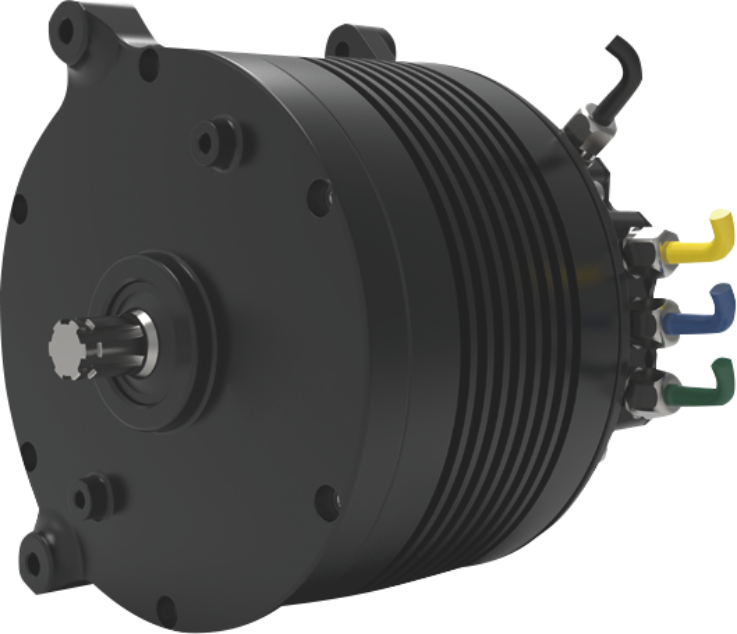

H55中置電機
金宇星——全球領先的電動輕型車電機專家
產品參數:
工作電壓(V): 60-96
額定功率(W): 2000-4000
峰值功率(W): 3000-5000
空載轉速: 5000-7000
額定轉速: 5400
峰值扭矩(N.m): 40-55
峰值效率(%): ≥90%
防護等級(IP): 67
絕緣等級: H
傳感器類型: 絕對值磁編碼
溫度檢測方式: PT1000
齒輪減速比:
Working voltage (V): 60-96
Rated power (W): 2000-4000
Peak power (W): 3000-5000
No-load speed (rpm): 5000-7000
Rated speed (rmp): 5400
Peak torque (N.m): 40-55
Peak efficiency (%): ≥90%
Protection level (IP): 67
Insulation level: H
Sensor type: Absolute value magnetic encoder
Brake type: PT1000
Gear Ratio:
產品尺寸:
安裝孔直徑: 4-M8
軸端外徑: Φ17(-0.05,-0.1)
外花鍵參數: 6*Φ14*Φ17*4
軸端至端蓋高度: 31
輪廓最大外直徑: Φ166
輪廓最大高度: 139.5
吊耳中心距離: 159.6
Installation hole diameter: 4-M8
Outer diameter of shaft end: Φ17(-0.05,-0.1)
External spline parameters: 6*Φ14*Φ17*4
Height from shaft end to end cover: 31
Maximum outer diameter of contour: Φ166
Maximum height of the profile: 139.5
Distance between lifting eye centers: 159.6
